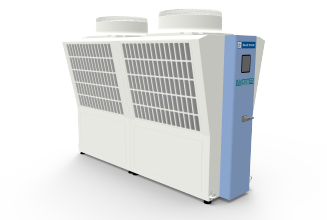

Blue Star 12 Ton Inverter Scroll Air Cooled Chiller XAC2VS-012MR3
Unit Price: Rs 4,20,000 +GST/-
Model | XAC2VS-012MR3 |
| BEE Star Rating | 3 Star |
| Capacity | 11.16 Ton |
| Refrigerant Gas | R410A |
| Power Consumption | 14.1 kW |
| Water Connection Size | 2 Inch Victaulic Coupling |
| Recommended Cable Size | 3.5 Core x 6 Sq mm Copper Cable OR 3.5 Core x 10 Sq mm Aluminum Cable |
| Recommended Breaker Size | 40 Amp |
| Dimensions (L x W x H) | 1285 x 1050 x 1917 mm |
| Operating Weight | 500 kg |
| Phase | 3 |
| Voltage | 400V +/-10% |
| Type of Compressor | Hermetically Sealed Danfoss Compressor |
| Compressor Model | VZH044 + HLJ083 |
| Type of Oil | PVE |
| Motor Type | Refrigerant Cooled |
| Condenser Type | Cu-Al , Air Cooled Tube and Fin |
| No of Refrigerant Circuits | 2 |
| VFD Make | Danfoss |
Download General Arrangement (GA) Drawing
