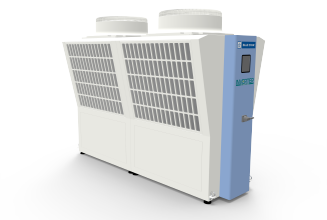

Blue Star 48 Ton Inverter Scroll Air Cooled Chiller XAC4VS-048MR3
Unit Price: Rs 12,50,000 +GST/-
Model | XAC4VS-048MR3 |
| BEE Star Rating | 3 Star |
| Capacity | 44.8 Ton |
| Refrigerant Gas | R410A |
| Power Consumption | 55.9 kW |
| Water Connection Size | 3 Inch Victaulic Coupling X 4 Nos. |
| Recommended Cable Size | 2 Runs x 3.5 Core x 25 Sq mm Copper Cable OR 2 Runs x 3.5 Core x 35 Sq mm Aluminum Cable |
| Recommended Breaker Size | 100 Amp x 2 Nos. |
| Dimensions (L x W x H) | 5000 x 1050 x 1917 mm |
| Operating Weight | 1800 kg |
| Phase | 3 |
| Voltage | 400V +/-10% |
| Type of Compressor | Hermetically Sealed Danfoss Compressor |
| Compressor Model | VZH088 + DSH184 |
| Type of Oil | POE 160SZ |
| Motor Type | Refrigerant Cooled |
| Condenser Type | Cu-Al , Air Cooled Tube and Fin |
| No of Refrigerant Circuits | 4 |
| VFD Make | Danfoss |
